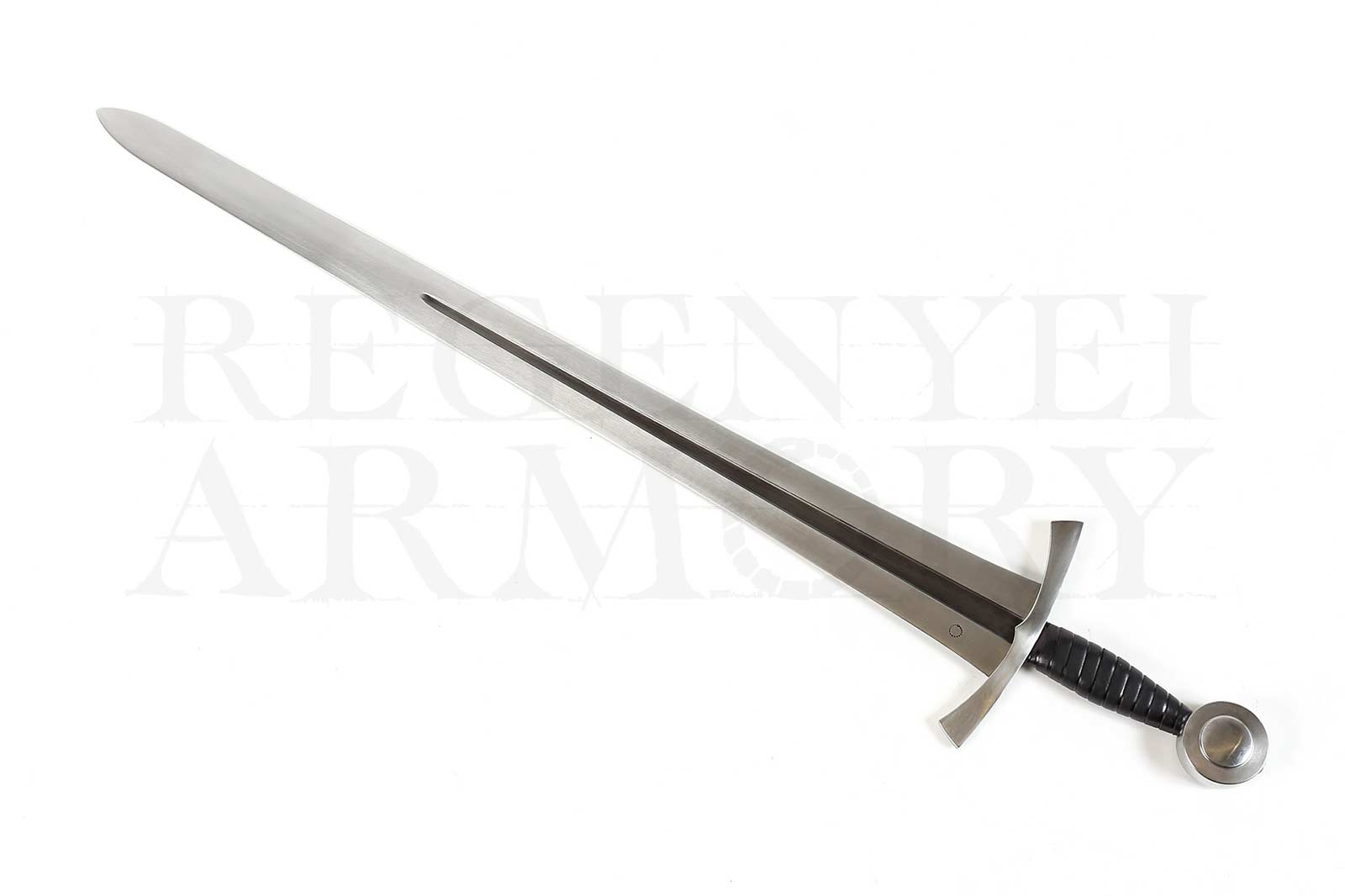

Arming Sword, RA, Custom Build

Arming Sword, RA, Custom Build

Year Warranty:

No 1, MS I.33, Type XV Length:80 cm – from guard to tip Width at the guard: 44 mm Base thickness:5 mm
No 2, Type XII Length: 75 cm – from guard to tip Width at the cross: 46 mm Base thickness:5 mm Fuller: 47 cm
No 3, Type XV Length: 87 cm –from guard to tip Width at the guard: 32 mm Base thickness:5 mm
No 5, Type XIV Length:71 cm –from guard to tip Width at the cross: 69 mm Base thickness:4 mm Fuller: 47 cm
No 7, Type XIa Length: 82 cm – from guard to tip Width at the guard: 42 mm Base thickness:5 mm Fuller: 59 cm
No 10, MS I.33 Fullered Length:80 cm – from guard to tip Width at the guard:40 mm Base thickness:5 mm Fuller: 40 cm

Weight: 2.46lbs (1120 g)
Full length: 38.5" (98 cm)
Blade length: 31.5" (80 cm) – from crossguard to tip
Grip Length: (not including pommel)
Scale Push Flex Test from Pommel: 33lbs (stiff)
Scale Push Flex from Crossguard:
SCA hanging Flex Test:
Tip: back-folded
Blade material: 51CrV4 spring steel
Blade hardness: 49-51 HRC
Crossguard: standard – 16 cm; polished
Grip length: 17 cm – including pommel
Pommel: disc I. – polished
Point of balance: ~3.34" (8,5 cm) – from crossguard
